Analizator plina

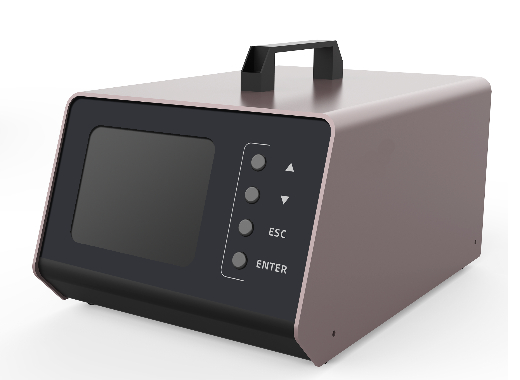

MQW-511 Analizator plina je uređaj dizajniran za sveobuhvatnu analizu ispušnih plinova u benzinskim vozilima. Ovaj napredni sustav kvantificira koncentracije kritičnih zagađivača, uključujući ugljikovodike (HC), ugljični monoksid (CO), ugljični dioksid (CO₂), kisik (O₂) i dušik okside (NO) s principom ne-disperzivne infracrvene metode apsorpcije.

Pošaljite upit

Opis proizvoda

1. Measure CO, HC and CO2 in motor vehicle exhaust using non dispersive infrared spectroscopy method, and measure O2 and NO using electrochemical principles. Calculate the excess air coefficient λ based on the measured values of CO, CO2, HC and O2;

2. This device is small in size, easy to operate, accurate in measurement and reliable in operation, making it suitable for OEMs, workshops and other industries.

Feature:

☞ Equipped with international level components, with small size, easy operation and accurate and reliable measurement;

☞ Equipped with automatic zero calibration function and high degree of automation;

☞ Visual design of interface, menu based operation and more convenient to use;

☞ Multi-level filtering system design can avoid contamination of sensors caused by long-term use;

☞ Communication with PC through RS-232;

☞ Exhaust emission detection during idle and two-speed idle processes on a standalone mode;

☞ Optional external or internal micro printer with direct printing function;

☞ Meets the accuracy requirements of international standard, e.g. ISO 3930 or Level I in OIML R99 .

Technical parameters:

Measurement range & Resolution
Item	HC	CO	CO2	NO	O2
Unit	×10-6	×10-2	×10-2	×10-6	×10-2
Measurement range	0~9,999	0.00~14.00	0.00~18.00	0~5,000	0~25.00
Resolution	1	0.01	0.01	1	0.01
Indication error
Item	Measurement range	Allowable indication error
		Absolute error		Relative error
HC	(0~5,000)×10-6	±12×10-6		±5%
	(5,001~9,999)×10-6	/		±10%
CO	(0.00~10.00)×10-2	±0.06×10-2		±5%
	(10.01~14.00)×10-2	/		±10%
CO2	(0.00~18.00)×10-2	±0.5×10-2		±5%
NO	(0~4,000)×10-6	±25×10-6		±4%
	(4,001~5,000)×10-6	/		±8%
O2	(0.0~25.00)×10-2	±0.1×10-2		±5%
Other parameters
Response time		NDIR: 8s NO:15s O2:12s
Warm-up time		15min
Environmental condition	Air pressure	75.0kPa~110.0kPa
	Temperature	-5℃~45℃
	Humidity	≤95%
Power supply		AC220V±22V, 50Hz±1Hz
Consumption power		45w
Dimension (LWH)		240×248×410mm
Weight		7kg
